ART-ISP-20

DESCRIPTIONS

FULL AUTOMATIC STEAM BOILER WITH 2 OUTLETS
Interior tank and body made stainless steel.(CrNi 304) Used for deburring and shining golden and silver products
Voltage&Frequency: 380 V & 50Hz
Total Power: 11 Kw Pump: 1 Kw
Power of resistance:10 Kw
Working Pressure: 6-7 bar
Dimensions: 50*52*97 cm

ART-IS-20

DESCRIPTIONS

FULL AUTOMATIC STEAM BOILER WITH 2 OUTLETS
Used for deburring and shining golden and silver products
Voltage&Frequency: 380 V & 50Hz
Total Power: 11 Kw
Pump: 1 KwPower of resistance:10 Kw
Working Pressure: 6-7 bar
Dimensions: 50*52*97 cm

ART-ISP-07S

DESCRIPTIONS

SEMI AUTOMATIC STEAM BOILER WITH 1 OUTLET
Interior tank and body made stainless steel.(CrNi 304)
Voltage&Frequency: 220 V & 50Hz
Total Power: 5 Kw
Power of resistance:5 Kw
Working Pressure: 5-6 bar
Dimensions:34*34*92 cm

ART-IS-07

DESCRIPTIONS

SEMI AUTOMATIC STEAM BOILER WITH 1 OUTLET
Total Power: 5 Kw
Power of resistance:5 Kw
Working Pressure: 5-6 bar
Dimensions:34*34*45 cm

100-1KTT

DESCRIPTIONS

100 LT PISTON AIR COMPRESSOR-3 phase
Voltage: 380 V
Tank Volume: 100 LT
Number of stage: 1
Total Power:1,1 Kw
Rotation: 900 rpm
Dimensions:102*42*90 cm
Pressure: 8 bar
Weight: 76kg
Air Suction:200 lt/min

100-1KTM

>

DESCRIPTIONS

100 LT PISTON COMPRESSOR-1 phase

200-1KTT

DESCRIPTIONS

200 LT PISTON AIR COMPRESSOR-3 phase
Voltage: 380 V
Tank Volume: 200 LT
Number of stage: 1
Total Power:2,2 Kw
Rotation: 750 rpm
Dimensions:150*48*90 cm
Pressure: 8 bar
Weight: 122 kg

T3KS

DESCRIPTIONS

TORNADO 3 SCREW AIR COMPRESSOR WITH DRYING SET
Screw Air Compressors, occupy minimum space, they have compact shape and their free air deliverycapacites are starting from 0.37 m3 / min. up to 2.3 m3 /min., also they have all other features of normal screw air compressors. When necessary, the Air-Dryers andline filters can also be mounted on top of them and save additional spaces.
Voltage: 380 V
Power of Motor:2,2 kw
Tank Volume: 200 LT Free Air
Outlet: at 8 bars 0,37 m3/min

T5KS

DESCRIPTIONS

TORNADO 5 SCREW AIR COMPRESSOR WITH DRYING SET
Screw Air Compressors, occupy minimum space, they have compact shape and their free air deliverycapacites are starting from 0.37 m3 / min. up to 2.3 m3 /min., also they have all other features of normal screw air compressors.
Voltage: 380 V
Power of Motor:4 kw
Tank Volume: 300 LT
Free Air Outlet: at 8 bars 0,54 m3/min

T7KS

DESCRIPTIONS

TORNADO 7 SCREW AIR COMPRESSOR WITH DRYING SET
Screw Air Compressors, occupy minimum space, they have compact shape and their free air deliverycapacites are starting from 0.37 m3 / min. up to 2.3 m3 /min., also they have all other features of normal screw air compressors. When necessary, the Air-Dryers and
Voltage: 380 V Tank
Volume:500 LT
Power of Motor:5,5 kw
Free Air Outlet: at 8 bars 0,86 m3/min

WAS20

DESCRIPTIONS

ELECTRICAL FULL AUTOMATIC WASHER EXTRACTOR -20 KG
Capacity: 20 kg/load
Voltage&Frequency: 380v-50 Hz
Drum Diameter: 700 mm
Drum Depth:550 mm
Power of motor: 3 kw 1500 rot/min.
Control Panel: microprocessor
Total Power: 15-17 kw
Heating Power: 12-14 kw
Water Consumption: 150 lt/load
Dimensions: 1050x1350x1250 mm
Weight: 400 kg

WAS30

DESCRIPTIONS

ELECTRICAL FULL AUTOMATIC WASHER EXTRACTOR -30 KG
Capacity: 30 kg/load
Voltage&Frequency: 380v-50 Hz
Drum Diameter: 790 mm
Drum Depth:600 mm
Power of motor: 4 kw
Control Panel: microprocessor
Total Power: 22-24 kw
Heating Power: 17-19 kw
Water Consumption: 150 lt/load
Dimensions: 1200x1350x1400 mm
Weight: 500 kg

WAS40

DESCRIPTIONS

ELECTRICAL FULL AUTOMATIC WASHER EXTRACTOR -40 KG
Capacity: 40 kg/load
Voltage&Frequency: 380v-50 Hz
Drum Diameter: 900 mm
Drum Depth:600 mm
Power of motor: 5.5 Kw
Control Panel: microprocessor
Total Power: 28-30kw
Heating Power: 22-24 kw
Water Consumption:200 lt/load
Dimensions: 1300x1400x1600 mm
Weight: 550 kg

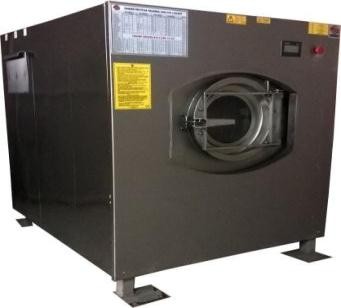

WAS50

DESCRIPTIONS

ELECTRICAL FULL AUTOMATIC WASHER EXTRACTOR -50 KG
Capacity: 50 kg/load
Voltage&Frequency: 380v-50 Hz
Drum Diameter: 995 mm
Drum Depth:600 mm
Power of motor: 7.5 Kw
Control Panel: microprocessor
Total Power: 35-37 kw
Heating Power: 26-28 kw
Water Consumption: 250 lt/load
Dimensions: 1400x1450x1700 mm
Weight: 650 kg

DM20

DESCRIPTIONS

DRYER MACHINE -20 KG
Capacity: 20 kg/load
Drum Diameter: 1050 mm
Drum Depth: 450 mm
Power of motor: 0.75 Kw
Total Power: 18-20 kw
Heating Power: 17-19 kw
Dimensions:1400x800x1800 mm
Weight: 400 kg

DM30

DESCRIPTIONS

DRYER MACHINE -30 KG
Capacity: 30 kg/load
Drum Diameter: mm
Drum Depth: mm
Power of motor: Kw
Total Power: kw
Heating Power: kw
Dimensions: mm
Weight: kg

DM40

DESCRIPTIONS

DRYER MACHINE -40 KG
Capacity: 40 kg/load
Drum Diameter: mm
Drum Depth: mm
Power of motor: Kw
Total Power: kw
Heating Power: kw
Dimensions: mm
Weight: kg

DM50

DESCRIPTIONS

DRYER MACHINE -50 KG
Capacity: 50 kg/load
Drum Diameter: 1050 mm
Drum Depth: 670 mm
Power of motor: 0.75 Kw
Total Power: 22-24 kw
Heating Power: 21-23 kw
Dimensions:1400x1500x1800 mm
Weight: 400 kg

SU1500320

DESCRIPTIONS

ROLLER TYPE IRONIN MAC.WITH DRYER BAND
Roller Length:1500 mm
Roller Diameter: 320 mm
Heating System: Electrical
Total Power: 16 kW
Heating Power: 15.5 kw
Motor Power: 0.55 kw
Dimensions:2200x950x1100 mm
Weight: 350 kg

SU1500500

DESCRIPTIONS

ROLLER TYPE IRONIN MAC.WITH DRYER BAND
Roller Length:1500 mm
Roller Diameter: 500 mm
Heating System: Electrical
Total Power: 23 kW
Heating Power: 22.5 kw
Motor Power: 0.55 kw
Dimensions:2270x1150x1200 mm
Weight: 600 kg

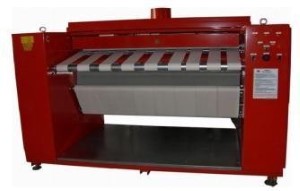

SU1800320

DESCRIPTIONS

ROLLER TYPE IRONIN MAC.WITH DRYER BAND
Roller Length:1800 mm
Roller Diameter: 320 mm
Heating System: Electrical
Total Power: 14-16 kW
Heating Power: 14-16 kw
Motor Power: 0.37 kw
Dimensions:2500x950x1100 mm
Weight: 380 kg

SU1800500

DESCRIPTIONS

ROLLER TYPE IRONIN MAC.WITH DRYER BAND
Roller Length:1800 mm
Roller Length:1800 mm
Roller Diameter: 500 mm
Heating System: Electrical
Total Power: 22-24 kW
Heating Power: 21-23 kw
Motor Power: 0.75 kw
Dimensions:2500x1150x1200 mm
Weight: 650 kg

SU2000750

DESCRIPTIONS

ROLLER TYPE IRONIN MAC.WITH DRYER BAND
Roller Length:2000 mm
Roller Diameter: 750 mm
Heating System: Electrical
Total Power: 25-27kW
Heating Power: 24-26kw
Motor Power: 0.75 kw
Dimensions:2770x1300x1350 mm
Weight: 750 kg

KHV100

DESCRIPTIONS

NOISELESS AIR COMPRESSOR
Capacity:100 Lt
Pressure:115 Psi / 8 bar
Height: 90 cm
Width: 45 cm
Lenght: 100 cm
Weight: 110 kg
Noise: 70 dsi

KHV50

DESCRIPTIONS

NOISELESS AIR COMPRESSOR
Capacity:50 Lt
Pressure:115 Psi / 8 bar
Height: 80 cm
Width: 45 cm
Lenght: 100 cm
Weight: 85 kg
Noise: 70 dsi

KHV25

DESCRIPTIONS

NOISELESS AIR COMPRESSOR
Capacity:25 Lt
Pressure:115 Psi / 8 bar
Noise: 65 dsi
Width: 40 cm
Lenght: 50 cm
Height: 70 cm
Weight: 45 kg

SHV100

DESCRIPTIONS

NOISELESS AIR COMPRESSOR WITH CABINET
Capacity:100 Lt
Pressure:115 Psi / 8 bar
Height: 90 cm
Width: 45 cm
Lenght: 100 cm
Weight: 110 kg
Noise: 70 dsi

SHV200

DESCRIPTIONS

NOISELESS AIR COMPRESSOR WITH CABINET
Capacity:200 Lt
Pressure:115 Psi / 8 bar
Width: cm
Lenght: cm
Weight: kg
Noise: dsi
